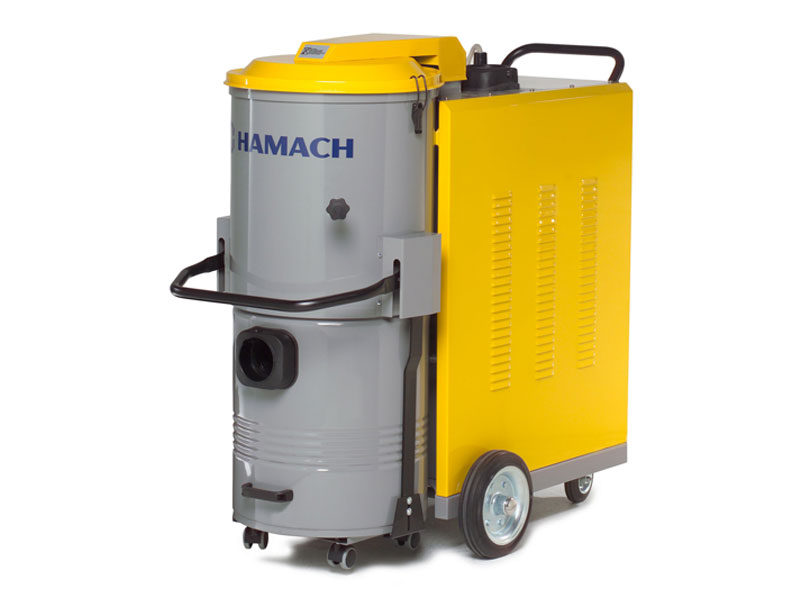

LE Tools & Machinery Sdn Bhd Hamach Turbines Central Vacuum Machine – HCV510HQ / HCV610HQ || LE Tools & Machinery Sdn Bhd

000562 000563 Hamach Turbines Central Vacuum Machine HCV510HQ HCV610HQ Hamach Turbines Central Vacuum Machine – HCV510HQ / HCV610HQ

The HCV 510 HQ is equipped with a molton filter for rough sanding dust and a nylon filter for fine dust. These filter are cleaned by a manual shaking device. The radial-folded polyester filter for the HCV 610 HQ are automatically cleaned by the automatic air pressure filter cleaner. The turbine is equipped with a presure tank as well as pressure regulator, water separator and electronic magnet valve. In order to be able to operate the unit by remote control, a switch-board is supplied standard with both turbines as well as a star delta switch for a gradual start-up. In both types a gasring vacuum pump is fitted.
Max. extraction point simultaneously in use: 5/6
Pipeline network (meter): ± 70/90
Power (KW=PK) & Volt (V): 5.5 = 7.5 & 400
Filter cleaning: Manual/Automatic
Dust container volume (L): 70

HCV 510 HQ Manual filter cleaner
Specification:
Voltage (V): 400
Dimensions: 78 x 48 x 110 cm
Weight: 160 kg
Power Consumption: 5,5 KW = 7,5 PK
Sound Level: 80 dB
Filter Material: Molton & Nylon
Filter Cleaning: Manual
Air Flow: 400 m³/hour
Under Pressure: 26 Kpa = 260 mbar
Filter Surface Area: 2 x 1 m²
Articles Number: 000562

HCV 610 HQ Automatic filter cleaner
Specification:
Voltage (V): 400
Dimensions: 78 x 48 x 110 cm
Weight: 180 kg
Power Consumption: 5,5 KW = 7,5 PK
Sound Level: 80 dB
Air Pressure: 5 bar
Filter Material: Polyester non woven
Filter Cleaning: Automatic
Air Flow: 400 m³/hour
Under Pressure: 26 Kpa = 260 mbar
Filter Surface Area: 2,3 m²
Articles Number: 000563
